Sand casting, the most widely used casting process, utilizes expendable sand molds to form complex metal parts that can be made of nearly any alloy. Because the sand mold must be destroyed in order to remove the part, called the casting, sand casting typically has a low production rate. The sand casting process involves the use of a furnace, metal, pattern, and sand mold. The metal is melted in the furnace and then ladled and poured into the cavity of the sand mold, which is formed by the pattern. The sand mold separates along a parting line and the solidified casting can be removed.

Sand casting is used to produce a wide variety of metal components with complex geometries. These parts can vary greatly in size and weight, ranging from a couple ounces to several tons. Some smaller sand cast parts include components as gears, pulleys, crankshafts, connecting rods, and propellers. Larger applications include housings for large equipment and heavy machine bases. Sand casting is also common in producing automobile components, such as engine blocks, engine manifolds, cylinder heads, and transmission cases.

   Green Sand Casting                              Resin Sand Casting                              Shell Mold Casting

Green Sand Casting.jpg                      Resin Sand Casting.jpg                      Shell Mold Casting.jpg

Process of Sand Casting

The process cycle for sand casting consists of six main stages, which are explained below.



The first step is to create the mold for the casting. A sand mold is formed by packing sand into each half of the mold. The sand is packed around the pattern, which is a replica of the external shape of the casting. When the pattern is removed, the cavity that will form the casting remains. The top and bottom halves of the mold are known as the “cope” and “drag”, respectively.



Once the mold has been made, it must be prepared for the molten metal to be poured. The surface of the mold cavity is first lubricated to help with the removal of the casting (the type of lubricant will depend on the type of sand and metal used), then the mold halves are closed and securely clamped together. It is essential the mold halves remain securely closed to prevent the loss of any material.  “jackets” are used to secure the two halves together.



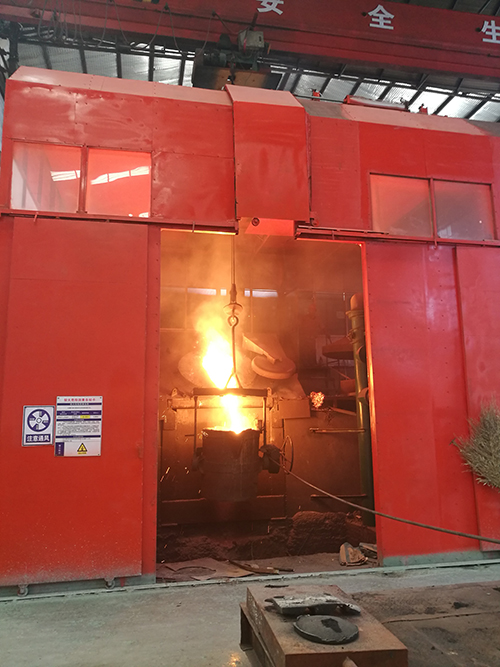

Molten metal is poured into the mold through a gating system, or gap leading from the casting cavity to the outside of the mold. You can see weights and “jackets” on these molds to secure the two halves together. Molten metal is being poured into this mold.



The molten metal that is poured into the mold will begin to cool and solidify once it enters the cavity. When the entire cavity is filled and completes the metal solidification process, the final shape of the casting is formed. The mold can’t be opened until the proper cooling time has elapsed.



After the solidification time has passed, the sand mold can simply be broken, and the casting removed. This step is typically performed by a vibrating machine that shakes the sand and casting out of the flask. The sand is reconditioned for reuse. Once removed, the casting will likely have some sand and oxide layers stuck to the surface. Shot blasting is sometimes used to remove the remaining sand.



Applications of sand casting

It is difficult to keep track of how many different techniques use sand casting. Its versatility as a casting process makes it ideal for almost any complex part, and almost all modern technologies benefit from this manufacturing process. The following list of only a few products manufactured using the sand casting process shows how wide the range of possible applications can be.

Sand casting is used to manufacture the following products.

A wide range of pistons and valves Sand casting

Blowers/impellers Sand casting

Cams, bushings and bearings Sand casting

Electronic equipment Sand casting

Gas/oil tanks Sand casting

Most hardware Sand casting

Engine blocks Sand casting

Automotive parts Sand casting

Screwsnuts and gears Sand casting

Agricultural machinery Sand casting

Medical equipment Sand casting

Mining equipment Sand casting

and much more.

FAQ of sand casting

What is molding sand?

Molding sand is a material used for molding in casting. molding sand is generally made of foundry sand, sand binder and auxiliary additives and other molding materials mixed in a certain ratio, or natural silica sand containing clay. The casting scrap caused by poor quality of molding sand is about 30 to 50% of the total casting scrap. Usually the molding sand requirements are: ① has a high strength and thermal stability, to withstand a variety of external forces and high temperature. ② good fluidity, that is, the molding sand in the external force or its own gravity under the action of the ability to move between the sand particles. ③ A certain plasticity, that is, the ability of molding sand to deform under the action of external force, and to maintain the given shape when the external force is removed. ④Better permeability, i.e. the ability of molding sand pores to transmit gas. ⑤ high collapse, also known as sand, that is, after the casting solidification molding sand is easy to destroy, whether it is easy to remove the performance from the casting. molding sand according to the different binders used, can be divided into clay sand, water glass sand, cement sand, resin sand, etc.. The clay sand, water glass sand and resin sand are the most used.

Advantages and Disadvantages of Sand Casting

The sand casting process has many advantages, especially in investment casting, another popular casting method (for more information, please read our article all about investment casting). This section will briefly explore why sand casting is so widely distributed in industry, and its shortcomings as a manufacturing method.

The main advantages of using sand casting are as follows.

Sand casting can be used to make almost any size part from a trigger to an engine block - if the correct mold is made, there is no limit to the size of the part required

Very complex parts can be made with sand casting if the correct core/pouring system is used

The process is highly adaptable and can be implemented in mass production of parts

Almost all types of alloys can be cast, provided they can be melted and poured

Low equipment costs, as it usually involves only sand and reusable patterns

short lead times for making molds, making sand casting ideal for short-term production

Low setup costs for sand casting and cost effective modifications

The main disadvantages of using sand casting are as follows.

Sand casting creates a high degree of porosity in the metal, resulting in low strength of the final part

Poor surface finish of the outgoing mold, which must be cleaned

Low dimensional accuracy of the casting due to poor surface finish and shrinkage of the metal after cooling

Sand casting is not defect-proof, so cleaning is mandatory and can be time-consuming

Sand castings with low tolerances must undergo some secondary processing

Therefore, although sand casting may be a cheaper alternative to investment casting and can provide more complex shapes, more work is required to obtain the same accuracy, finish and overall part quality.

Sand casting, while nowhere near as precise as investment casting, is a low-cost, low-complexity manufacturing process that has repeatedly proven itself to be an integral part of modern manufacturing. If investment casting is too cumbersome, or if large parts are required, consider implementing sand casting into your production line.
