A Guide to Ductile Iron

Oct. 19, 2021

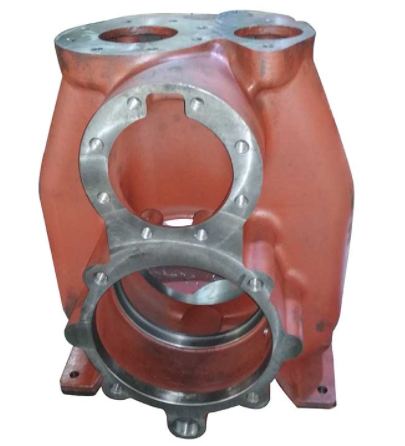

Ductile Iron Pump Volute

The so-called "iron instead of steel" mainly refers to ductile iron. Ductile iron is obtained through spheroidization and conception treatment, which effectively improves the mechanical properties of cast iron, especially the plasticity and toughness, and thus obtains higher strength than carbon steel.


The background of ductile iron

In 1943, in the research laboratory of the International Nickel Corporation, Keith Dwight Millis included magnesium (a copper-magnesium alloy) to cast iron-the strengthened actors iron did not contain ranges, but It is almost perfect spherical graphite. Ductile cast iron was birthed. The benefit of ductile cast iron is that graphite balls are not utilized as stress concentrators, but as split arresters, which is the factor for the ductility of ductile cast iron.


This new form of cast iron was immediately made use of for flexible cast iron, forgings, cast steel, or steel items. From now on, ductile cast iron has developed into a world-class material. Compared to typical alternate products, it offers casting remedies at an affordable rate.


Ductile iron castings as well as ductile cast iron


If cast iron undergoes compressive lots, these stress points are not especially damaging, and also flake graphite cast iron is excellent under compression. Nevertheless, when the tensile tons exceed the natural tensile toughness of cast iron, fractures propagate quickly from these tension factors, which can create quick tensile failure. The outcome is that cast iron has almost no prolongation and is a breakable material, so its use in tensile and also effect tons applications is limited. For years, shop employees and metallurgists have tried to establish a brand-new type of cast iron that can stand up to bending and also impact lots, however likewise has even more malleable cast iron features, and also can produce grey cast iron at a lower price. This brought about the development of ductile iron.


Performance of ductile iron efficiency


Ductile cast iron can be alloyed with a percentage of copper. As the copper content increases, the strength of the iron will end up being higher as well as greater. These copper alloy ductile cast irons can also be warm dealt with and also are particularly appropriate for induction and also fire solidifying. By amounting to 30% nickel and also a percentage of chromium, a collection of austenitic ductile irons can be created. These austenitic ductile irons have much better efficiency in high temperatures and severe environments.


One area that can cause confusion is the variety of methods to define ductile iron. Ductile cast iron, ductile iron, SG, SG cast iron, spheroidal graphite, and spheroidal graphite can be made use of interchangeably.


Cast Iron Pump Casing

Ordinary cast iron vs ductile cast iron


Ordinary cast iron, likewise known as grey cast iron, also consists of a percentage of graphite, but they exhibit bent lines as well as are called flakes, in contrast to the graphite spheres you see in ductile iron. Certainly, the only means to see graphite is with a microscope, not the naked eye.


The major component of ductile iron is a combination of iron (about 94%) and carbon, silicon, manganese, magnesium, phosphorus, sulfur, and copper. Sometimes more copper is contributed to increasing strength, while nickel or chromium is included in enhancing deterioration resistance. In this instance, 15-30% of the iron aspect will be replaced with various other elements.


One large benefit of using ductile cast iron is that they are much stronger than ordinary cast iron (likewise called grey actors iron). The tensile toughness of cast iron is about 20,000-60,000 psi, while the tensile stamina of ductile iron ranges from 60,000 psi to 120,000 psi.


If you go down an item made of (gray) cast iron from a height of 10 feet in the air, it is likely that you will see the cast iron things crack. Yet this is not the case for points constructed from ductile iron. Objects made of ductile iron can be hit continuously without splitting. This is a really essential thing when determining what material will fit the application, you require it.


Why is ductile iron so popular?


Although ductile iron is a sort of cast iron, it is extra resistant to fatigue and wear than cast iron due to the round graphite framework cast into the metal. This spherical graphite drill little bits enable ductile iron to withstand better effect, while additionally permitting the expansion. Ductile cast iron is typically called spheroidal graphite cast iron or nodular cast iron.


When making ductile iron, foundries will of course continue to include carbon from the iron itself until they add extra carbon than iron can normally take in. This is the difference between spheroidal graphite cast iron and also steel since the carbon material in the steel substance is only the content that iron can take in.


The graphite flakes in grey cast iron are more probable to trigger a crack, while the spherical nodules in nodular cast iron in fact help the iron with each other. Gray iron is extra breakable and extra vulnerable to breaking, while ductile iron will flex.


Ductile iron has stronger wear resistance, so it has durable power. Therefore, it is really suitable for applications that need even more resistance because of friction. In these cases, the graphite structure can function as a dry lubricant.


This sort of iron has excellent warm dissipation capacity. Generally speaking, it is easy to machine, however, it is more difficult to machine than normal grey cast iron. This is an excellent suit for use on large devices since it tends to suppress sound and also vibration better than using steel.


One of the very best uses for iron making use of ductile is for applications where you need a stronger, much more wear-resistant metal.
