High chrome casting, also known as high chromium cast iron, is a remarkable material that has gained significant recognition for its exceptional properties and wide range of applications. In this article, we will delve into the properties of high chrome casting and explore its diverse applications across various industries.
High chrome casting is a specialized form of cast iron that contains a high percentage of chromium, typically ranging from 12% to 30%. This alloyed composition provides high chrome casting with unique mechanical and physical properties, making it suitable for demanding applications that require exceptional wear resistance, corrosion resistance, and high temperature strength.
High chrome casting is produced through a casting process, wherein molten metal is poured into a mold and allowed to solidify. The high chromium content in the alloy contributes to the formation of hard, wear-resistant carbides within the microstructure, enhancing the material’s overall performance.
In the casting process, cast steel and considering the characteristics of cast iron in combination, full attention must be paid to the feeding problem of castings. The principle is the same as that of steel castings (using risers and chilled iron, and following the principle of sequential solidification). Due to the high content of chromium in the alloy, it is easy to form a film on the surface of the molten iron, so the liquid iron seems to have poor fluidity, but in fact, the fluidity is better.
The shrinkage of high chromium cast iron is similar to that of cast steel, and its linear shrinkage rate can be calculated as 1.8% to 2% on the pattern production. In the production of sand molds, the size of the riser can be calculated according to the regulations of carbon steel, and the gating system is calculated according to gray cast iron, but the cross-sectional area needs to be increased by 20% to 30%. The choice of pouring riser should pay attention to two aspects: one is to ensure the quality of the casting working belt (use part); the other is to maximize the yield of the casting.
Because the riser of high chromium castings is not easy to cut off, it is advisable to use side riser or easy-to-cut riser in the form of the riser.
In the design of the casting process of specific parts, care must be taken not to prevent the casting from shrinking, so as to avoid cracking. In addition, if the unpacking temperature is too high after pouring, it is easy to cause the casting to crack. Slow cooling below 540℃ is very necessary. The casting should be fully cooled in the mold before opening the box to clean the sand, or do not open the box first. Clear the sand and pile them together (castings, pouring systems, etc.) to cool the dry sand slowly. The environment around the unpacking must be kept dry, free from moisture and water; otherwise, it is easy to cause cracks in the casting.
The pouring temperature should be low, which is conducive to the refinement of the dendritic and eutectic structure and can avoid defects such as excessive shrinkage and sand sticking on the surface caused by excessive temperature. The pouring temperature is generally about 55℃ higher than its liquidus line (1290～1350℃), light and small parts are generally controlled at 1380～1420℃, and heavy and thick parts with a wall thickness of more than 100mm are controlled at 1350～1400℃.
The composition of high chrome casting primarily consists of iron as the base metal, along with significant amounts of chromium, carbon, and other alloying elements such as nickel and molybdenum. The presence of chromium promotes the formation of carbides, which are dispersed throughout the microstructure. This unique microstructure gives high chrome casting its exceptional properties.
One of the most notable characteristics of high chrome casting is its exceptional wear resistance. The presence of carbides, primarily chromium carbides, significantly improves the material’s hardness and resistance to abrasive wear. This makes high chrome casting an excellent choice for components subjected to severe abrasive forces, such as grinding balls, crushing equipment, and wear liners.
High chrome casting exhibits remarkable corrosion resistance, thanks to the high chromium content. Chromium forms a protective oxide layer on the surface of the casting, acting as a barrier against corrosive elements. This corrosion resistance makes high chrome casting suitable for applications in corrosive environments, including chemical processing, mining, and marine industries.
High chrome casting demonstrates impressive high temperature strength, enabling it to withstand elevated temperatures without significant loss of mechanical properties. This property makes it ideal for applications involving high-temperature environments, such as furnace parts, heat treatment equipment, and exhaust systems.
The versatility of high chrome casting makes it widely used in various industries. Some common applications include:

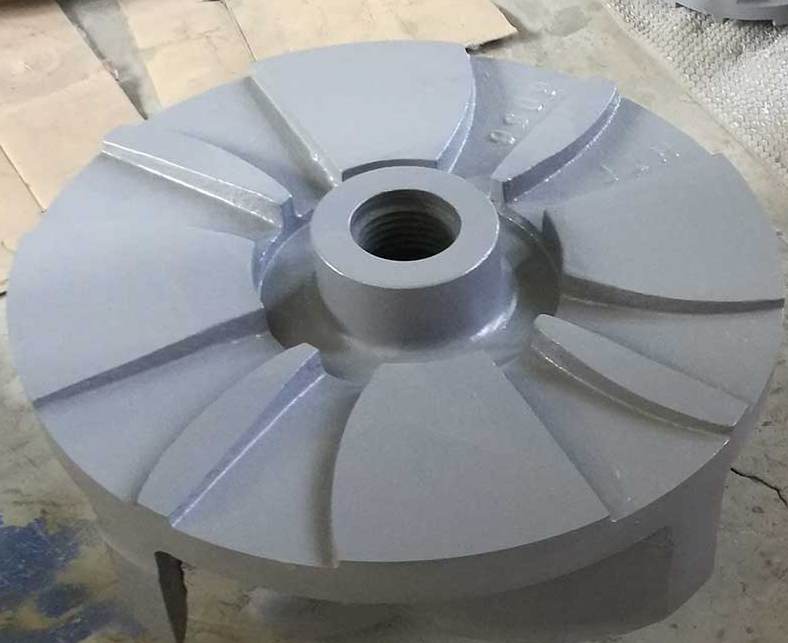

Mining and Mineral Processing: High chrome casting is extensively used in mining and mineral processing equipment, such as grinding media, crusher parts, and slurry pump components, due to its exceptional wear resistance.
Power Generation: Components exposed to high temperatures and abrasive conditions, such as coal pulverizer rolls, boiler tubes, and ash handling systems, benefit from the wear resistance and high temperature strength of high chrome casting.
Cement Industry: High chrome casting finds application in cement manufacturing processes, particularly in grinding media and wear liners for cement mills, where its wear resistance is highly valued.
Oil and Gas Industry: Various components in oil and gas exploration and production, such as mud pump liners, drilling tools, and valve parts, utilize high chrome casting for its wear and corrosion resistance properties.
While high chrome casting offers exceptional properties, it is important to consider certain challenges and considerations. Achieving uniform distribution of carbides during the casting process can be demanding, and improper heat treatment can affect the material’s microstructure and performance. Furthermore, cost considerations may arise due to the higher alloying elements’ content. Careful attention to casting techniques, alloy design, and heat treatment processes is necessary to maximize the potential of high chrome casting.
High chrome casting, with its remarkable properties of superior wear resistance, corrosion resistance, and high temperature strength, has become a vital material in numerous industrial applications. Its versatility makes it a preferred choice for various industries, including mining, power generation, cement, and oil and gas. By understanding the composition, microstructure, and applications of high chrome casting, engineers and manufacturers can unlock its full potential and explore new possibilities in engineering and materials science.
